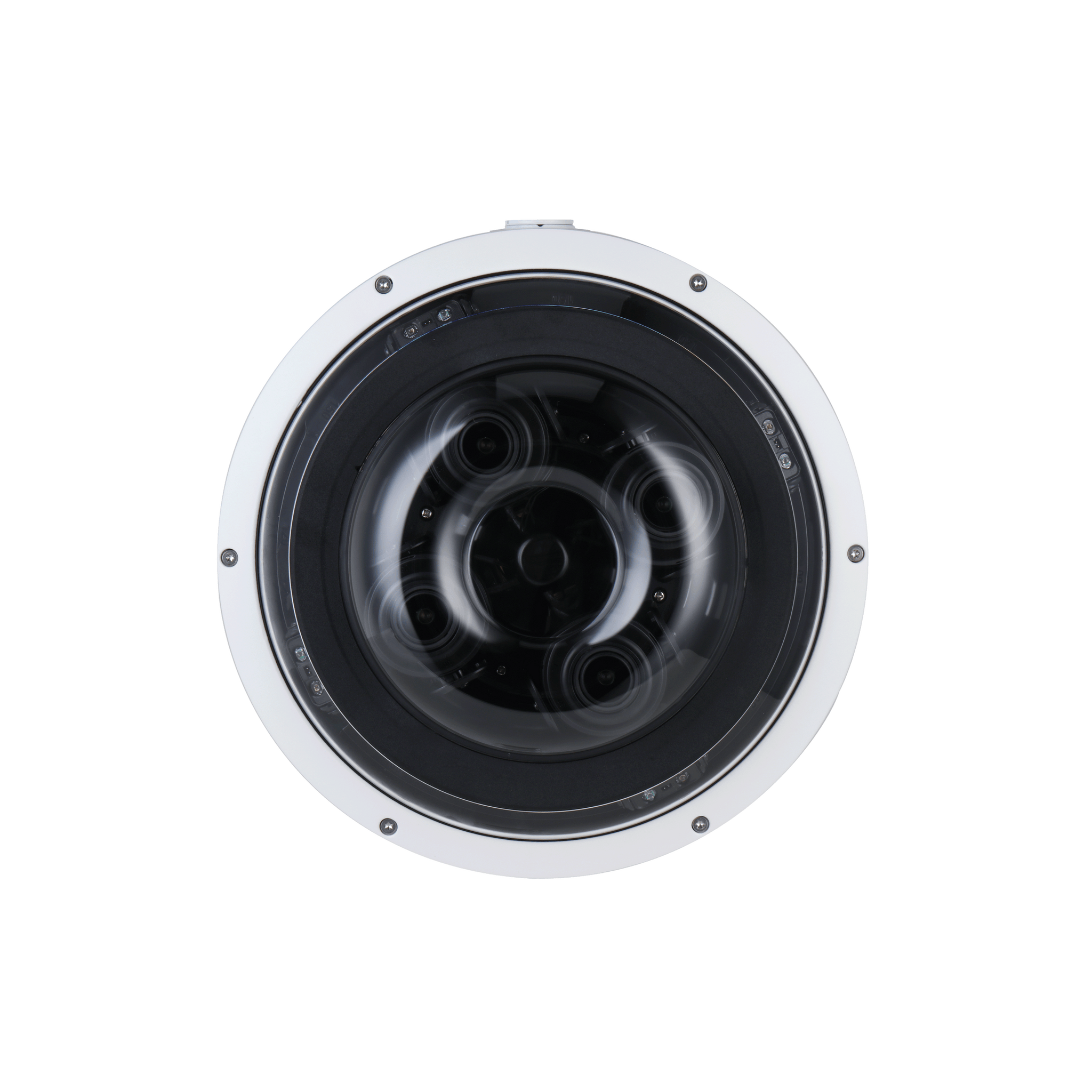

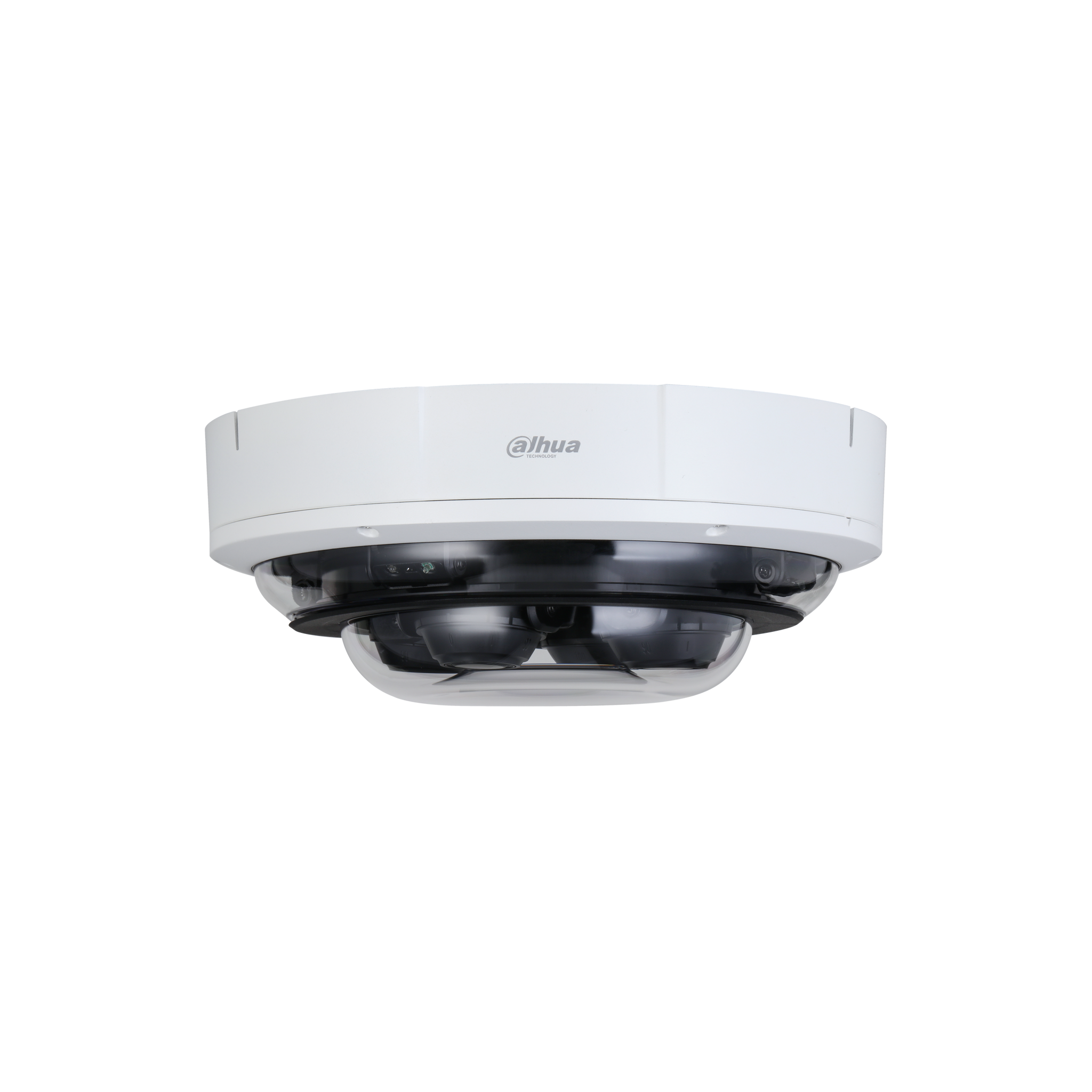

4 × 5 MP 4-Directional Panoramic Dome Wizmind Network Camera
- Features
- Specifications
- Downloads
> 4 x 5MP 1/2.7'' CMOS image sensor, low illuminance, high image definition.
> 4 channel stream output, and each channel can output max. 5 MP (2592 x 1944) @25/30 fps.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> The intelligent functions of 4 channels can be enabled at the same time, including face detection, IVS, and people counting.
> Intelligent detection: Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human), abandoned object, missing object, loitering detection, people gathering, and parking detection.
> FlexStream: The 4 channels of images can be viewed in a defined channel with 1 channel stream. That is the multiple images can be displayed in 1 channel.
> Web 5.0 interface design, which is friendly to users, and easy for operation.
> Built-in IR LED illuminator, and the max. illumination distance is 30 m.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; supports max. 256 G Micro SD card.
> 12 VDC/PoE power supply; 12 VDC power output, and max. current 165mA; easy for installation.
> IP67 and IK10 protection.
> 4 channel stream output, and each channel can output max. 5 MP (2592 x 1944) @25/30 fps.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> The intelligent functions of 4 channels can be enabled at the same time, including face detection, IVS, and people counting.
> Intelligent detection: Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human), abandoned object, missing object, loitering detection, people gathering, and parking detection.
> FlexStream: The 4 channels of images can be viewed in a defined channel with 1 channel stream. That is the multiple images can be displayed in 1 channel.
> Web 5.0 interface design, which is friendly to users, and easy for operation.
> Built-in IR LED illuminator, and the max. illumination distance is 30 m.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; supports max. 256 G Micro SD card.
> 12 VDC/PoE power supply; 12 VDC power output, and max. current 165mA; easy for installation.
> IP67 and IK10 protection.
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 5MPx4 |
| CAMERA STYLE | Dome |
| COLOUR | White |
| LENS TYPE | Motorized |
| TECHNOLOGY | PANORAMIC SERIES |
| POE | POE+ |
IPC-PDBW82041-B360-S2_S2_datasheet_20221219
pdf
Download
Dahua Network Camera Web 5.0_Operation Manual_V1.0.6
pdf
Download
Dahua Network Camera Web 3.0_OperationManual_V2.1.5
pdf
Download
Multi-sensor Panoramic Network Camera Installation Guide_V1.0.0
pdf
Download
Dahua Multi-sensor Panoramic Network Camera_Quick Start Guide_V1.0.0
pdf
Download
