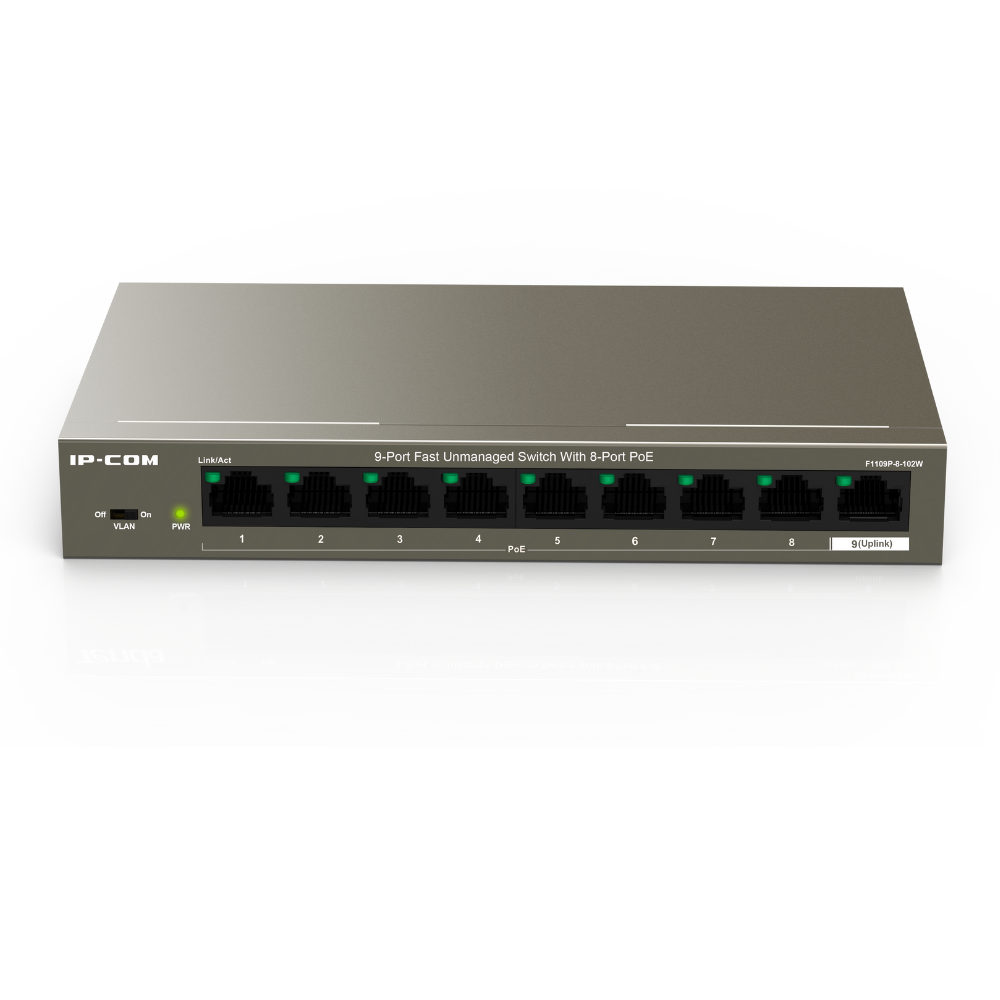

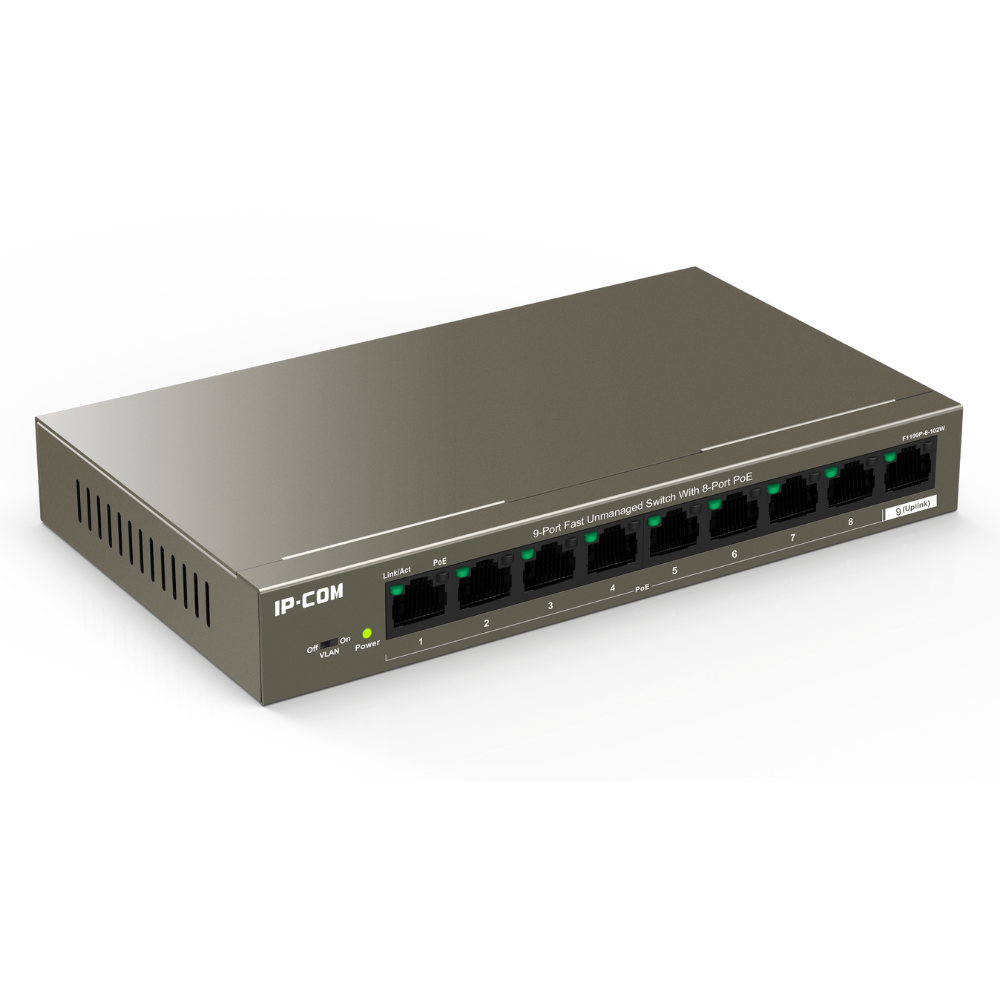

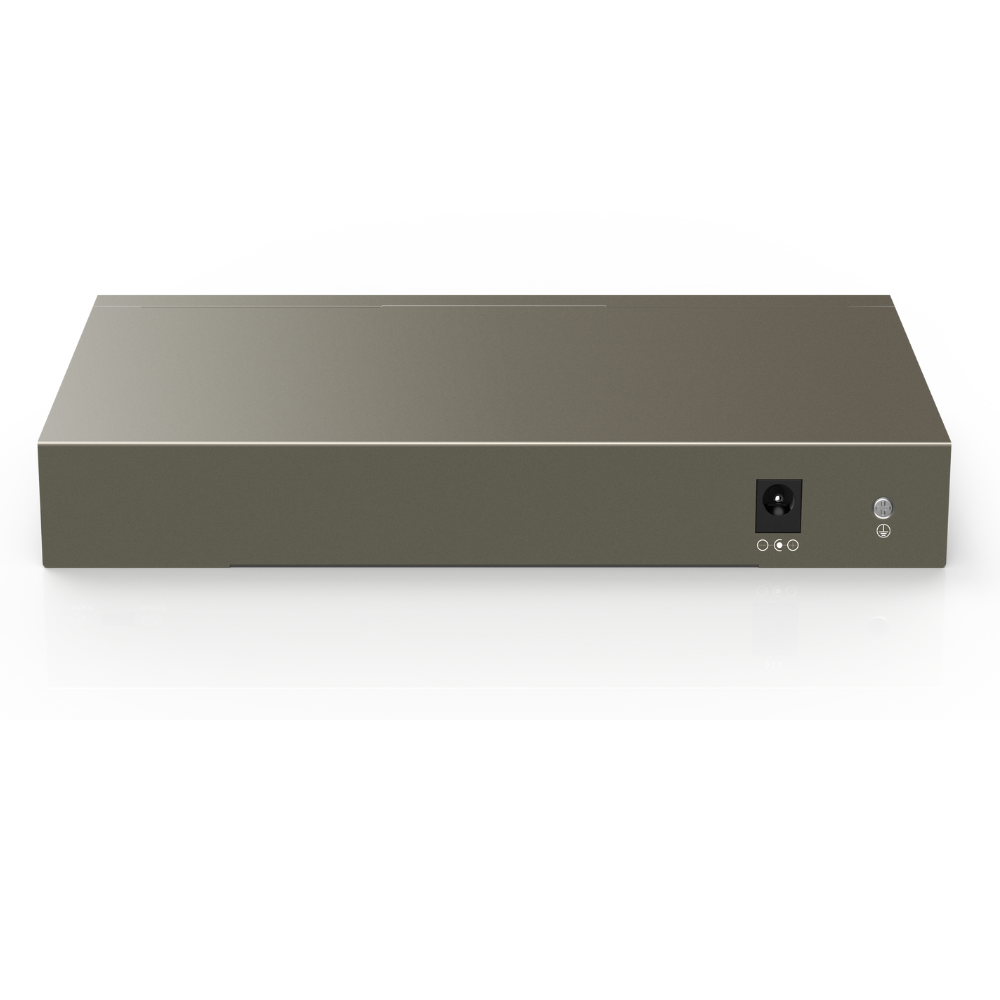

IP-COM 9 PORT SWITCH WITH 8 PORT POE

> Compliant with IEEE802.3, IEEE802.3u, IEEE802.3X, IEEE802.3af/at standards
> 9*10/100Mbps Base-T RJ45 port; Ports 1-8: IEEE 802.3af/at PoE ports
> 2K MAC address and MAC address learning
> IEEE 802.3x full duplex flow control, and backpressure half duplex flow control
> 1.8 Gbps switching fabric for non-blocking line-speed forwarding
> maximum power output of each PoE port: 30 W; maximum power output of the switch: 102W.
> 1Mb packet buffer, twice of that counterparts
> Supports port VLAN; ports 1 to 8 can communicate with the uplink port (port 9) but cannot communicate with each other
> Desktop installation & wall-mount

POE SWITCH
ETHERNET PORT	8
OPTICAL PORT	0
UPLINK PORT	1
POE BUDGET	102W
LAYER	Layer 2
TYPE	Unmanaged

F1109P-8-102W Datasheet Download
